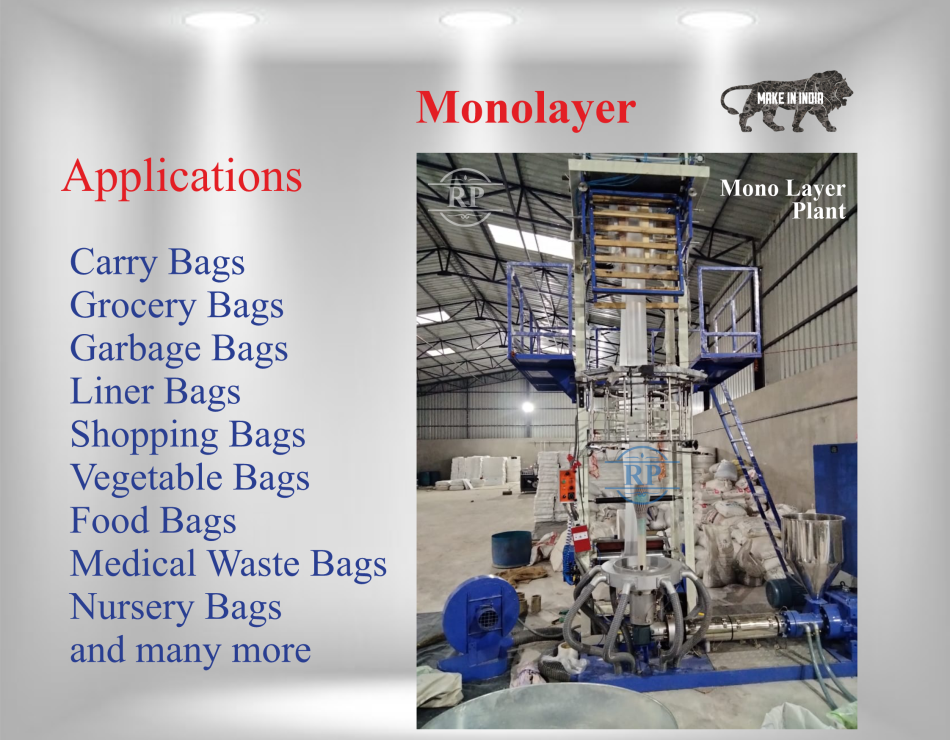

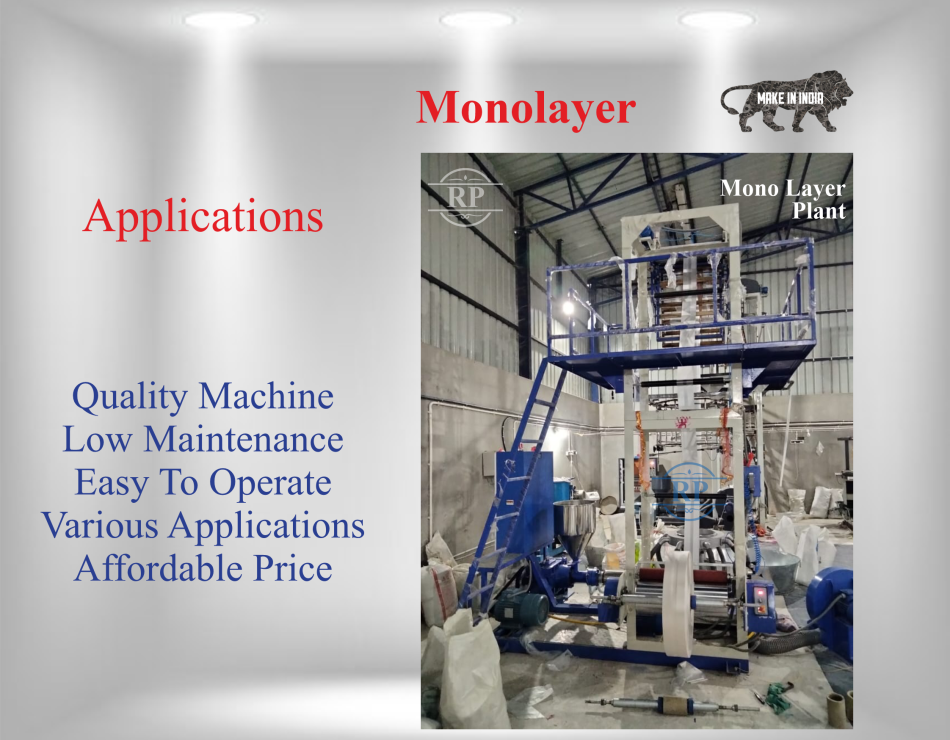

Biodegradable Monolayer Blown Film Plant
A biodegradable blown film plant is a type of plastic extrusion machine that uses biodegradable materials, such as plant-based resins, to produce films that can break down naturally in the environment. These films can be used for various applications, such as food packaging, agricultural films, and even medical packaging.
0
0
0
Model No. BIODEGRADABLE 35MM MONOLAYER PLANT
Screw Dia : 35mm
L/D Ratio : 28:1
Output Max : 28 Kg. / hr.
Nip Roller Size : 20 Inch
Main Motor : 7.5 HP
Gear Box : 2 Stage Helical
Die Head : Spiral
Die Lip Size LD : 4 Inch
Die Lip Size HM : 2.5 Inch
Air Cooling Ring : Single
Filter : Candle
Winder : Attached
Winder Motor : 0.5 HP
Take Up Motor : 1 HP
Air Blower : 2 HP
Floor Area : 7x8x11 Ft.
Heating Zone : 5+1
Total Connecting Load : 19 KW
Model No. BIODEGRADABLE 40MM MONOLAYER PLANT
Screw Dia : 40mm
L/D Ratio : 28:1
Output Max : 40 Kg. / hr.
Nip Roller Size : 26 Inch
Main Motor : 10 HP
Gear Box : 2 Stage Helical
Die Head : Spiral
Die Lip Size LD : 4 Inch
Die Lip Size HM : 2.5 Inch
Air Cooling Ring : Single
Filter : Candle
Winder : Attached
Winder Motor : 0.5 HP
Take Up Motor : 1 HP
Air Blower : 2 HP
Floor Area : 8x9x13 Ft.
Heating Zone : 5+1
Total Connecting Load : 22.5 KW
Model No. BIODEGRADABLE 45MM MONOLAYER PLANT
Screw Dia : 45mm
L/D Ratio : 28:1
Output Max : 50 Kg. / hr.
Nip Roller Size : 32 Inch
Main Motor : 15 HP
Gear Box : 2 Stage Helical
Die Head : Spiral
Die Lip Size LD : 6 Inch
Die Lip Size HM : 3 Inch
Air Cooling Ring : Single
Filter : Candle
Winder : Attached
Winder Motor : 0.5 HP
Take Up Motor : 1 HP
Air Blower : 5 HP
Floor Area : 9x10x13 Ft.
Heating Zone : 5+1
Total Connecting Load : 26 KW
Model No. BIODEGRADABLE 55MM MONOLAYER PLANT
Screw Dia : 55mm
L/D Ratio : 30:1
Output Max : 75 Kg. / hr.
Nip Roller Size : 42 Inch
Main Motor : 25 HP
Gear Box : 2 Stage Helical
Die Head : Spiral
Die Lip Size LD : 8 Inch
Die Lip Size HM : 3 Inch
Air Cooling Ring : Single
Filter : Candle
Winder : Attached
Winder Motor : 1 HP
Take Up Motor : 1 HP
Air Blower : 5 HP
Floor Area : 10x12x15 Ft.
Heating Zone : 6+1
Total Connecting Load : 34 KW
